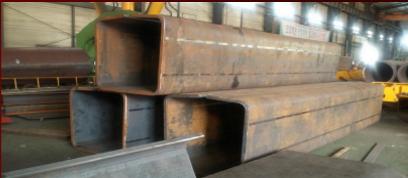

2.0 structural square tube heavy duty mACHINERY—single lsaw weld:



BASIC SPECIFICATION:

production Pipe:



Size:                                            350mm ~ □1,000mm

Length:                                       Min. 6,000mm ~ Max.12,000mm

Thickness:                                  Min. 6mm ~ Max.40mm

Productivity:                               5 pieces (□550 x 25.4mm x 12m)

Weight:                                       Max. 15 ton/piece

Material Grade:                         SM490, Mild steel



Utility Conditions:

Outside Temperature:  -15°c~ 40°c

Humidity:                                    Max. 30 ~ 80%(Non-condensing)



Electricity:

Frequency:                                 50Hz

AC Drive:                                    AC415V x 3Phase ±10%

Control:                                       AC220V x Single phase ±5% & DC24V



Supply Air Condition:



Pressure:                                    4.5 ~ 7.0bar at T.O.P



Supply Water Condition:



Operating Pressure:                  3.0 ~ 6.0bar at T.O.P

Supply Temperature:   Lower than 25°c
